SQUALETTO

Print

SQUALETTO – HAND-HELD ELECTRICAL DRY SAW – 1,6HP (1,2KW) 230V ENGINE – SUPPORTS Ø125 BLADE – MAX CUT DEPTH 3CM – INCLUDES MICROMETRIC CUT DEPTH ADJUSTMENT SYSTEM, ADJUSTABLE CALIBRATED CUT SLIDER WITH TEFLON PROFILE, AND VACUUM SYSTEM WITH DUST BAG – 4,5KG WEIGHT


SQUALETTO

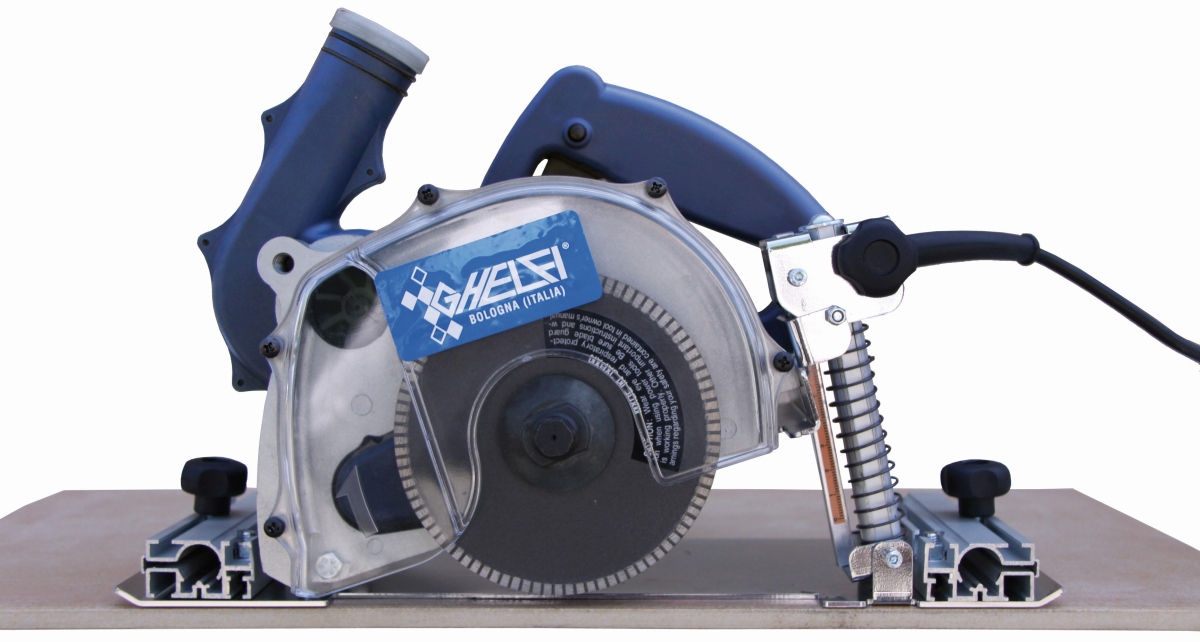

Circular hand-held electrical dry saw with built-in vacuum system and sliding guide.

Equipped with a super-powerful 1,6HP (1,2KW) engine spinning at 12000 RPM. Designed to cut ceramic, kerlite, marble, granite or porcelain tiles, it also proves invaluable at cutting plasterboard and insulation panels of all types.

Supports Ø 125 mm diamond blade, reaching 3cm maximum cutting depth. Extremely lightweight at just 4,5 Kilos.

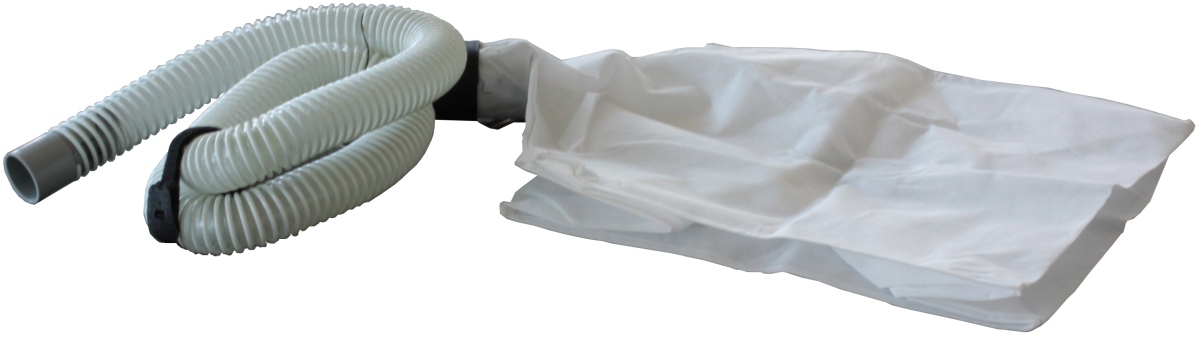

The built-in vacuum system is designed to collect all dust generated during operation into the supplied bag.

A sidebar connected to the main unit by two calibrated bars is specially designed to help operator set his wanted distance from a tile’s edge, and execute a perfectly parallel and straight cut from there on with no effort. Sidebar’s sliding over cut material is facilited by a special Teflon edge.

A vertical tilting system is also built into the main cutting unit, with a spring-back feature and a micrometric cutting depth adjustment system. After precisely setting his wanted cutting depth, the user can easily secure the value by just tightening a special easy-reach knob.

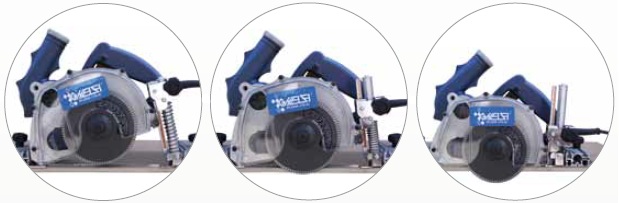

Micrometric cutting depth adjustment system.



squaletto_2.jpg A special Teflon edge facilitates reference profile’s sliding all along tile’s edge.



ITEM DESCRIPTION
1125 SQUALETTO – HAND-HELD ELECTRICAL DRY SAW WITH VACUUM – 1,6HP (1,2KW) 230V ENGINE
