ZERO – THE UNIVERSAL LEVELLING CLIP – 1-1.5-2-3-4 MM

Print

ZERO – THE UNIVERSAL LEVELLING CLIP – 100% COMPATIBLE WITH VIRTUALLY ALL THIRD-PARTY TILE LEVELLING WEDGES – SUPPORTS TILES FROM 2 UP TO 15 MM THICK – SEVERAL VARIATIONS AVAILABLE FOR JOINT CALIBRES 0.5, 1.0, 1.5, 2.0, 3.0 AND 4.0 MM – 200 PCS BAG

Download PDF brochure

thumbnail of ZERO 2246E 4.0sp ENG


ZERO – THE UNIVERSAL LEVELLING CLIP

A tile-levelling clip with built-in linear spacer, usable with the wedges of all most common third-party¬† tile levelling systems on the market, including of course Ghelfi’s own patented SPF Universal Levelling Wedges.

Its thickness defines the supported joint calibre. It is available in 5 variations: 0.5, 1.0, 1.5, 2.0, 3.0 and 4.0 mm joint calibre.

0.5 mm joint

1.0 mm joint

1.5 mm joint

2.0 mm joint

3.0 mm joint

4.0 mm joint



ZERO supports tiles approximately 2 to 15 mm thick (2 to 14 mm for joints up to 1.5 mm). Very modest variations may apply to both minimum and maximum thickness range limit depending on the specific brand of the wedges our clip is used with – different wedges have slightly different slope angles.

For laying schemes, needed quantity tables and all other information about ZERO please refer to the dedicated page.



ITEM DESCRIPTION
2244 ZERO – THE UNIVERSAL LEVELLING CLIP – 0,5 MM MIN. JOINT – 200PCS BAG

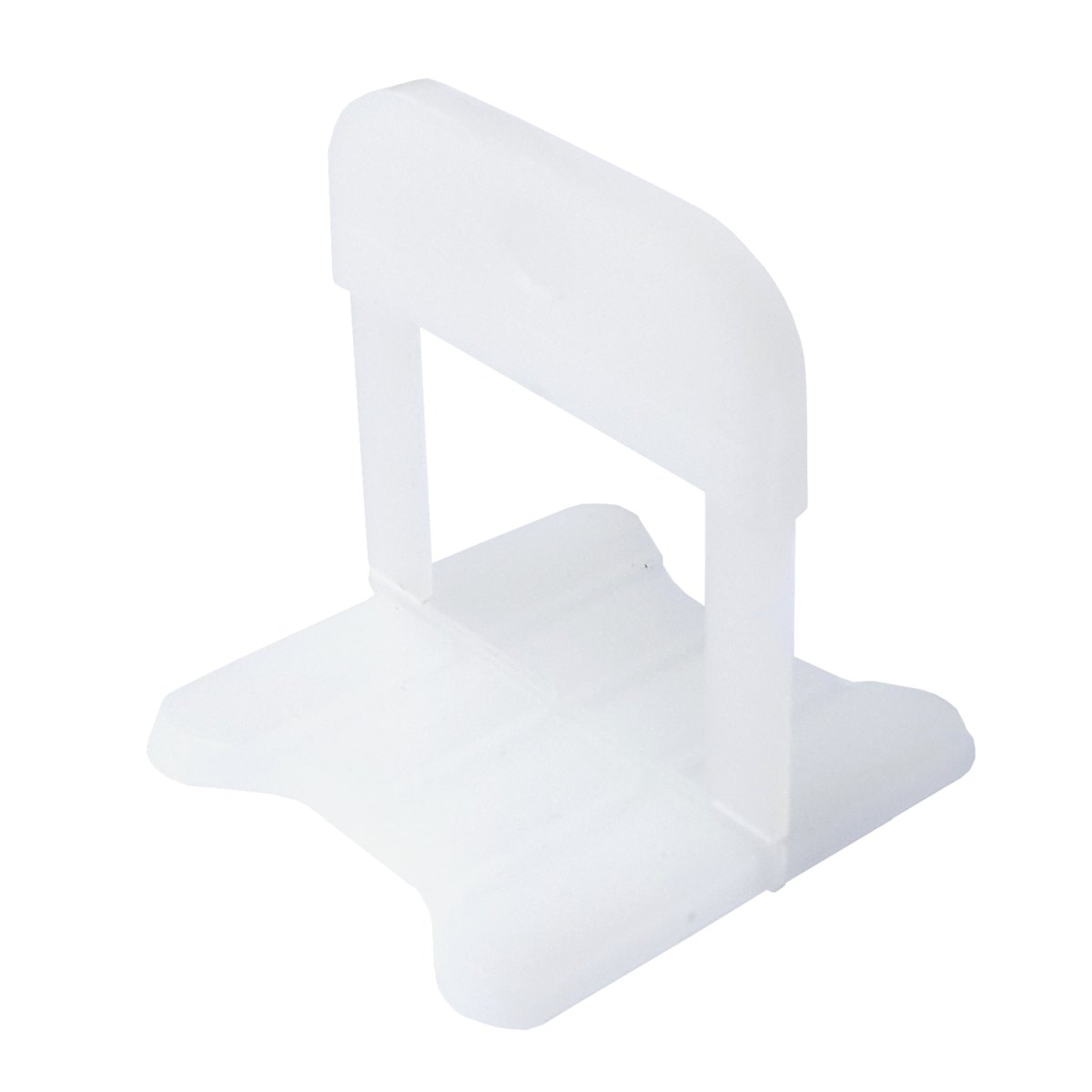

2247 ZERO – THE UNIVERSAL LEVELLING CLIP – 1,0 MM MIN. JOINT – 200PCS BAG

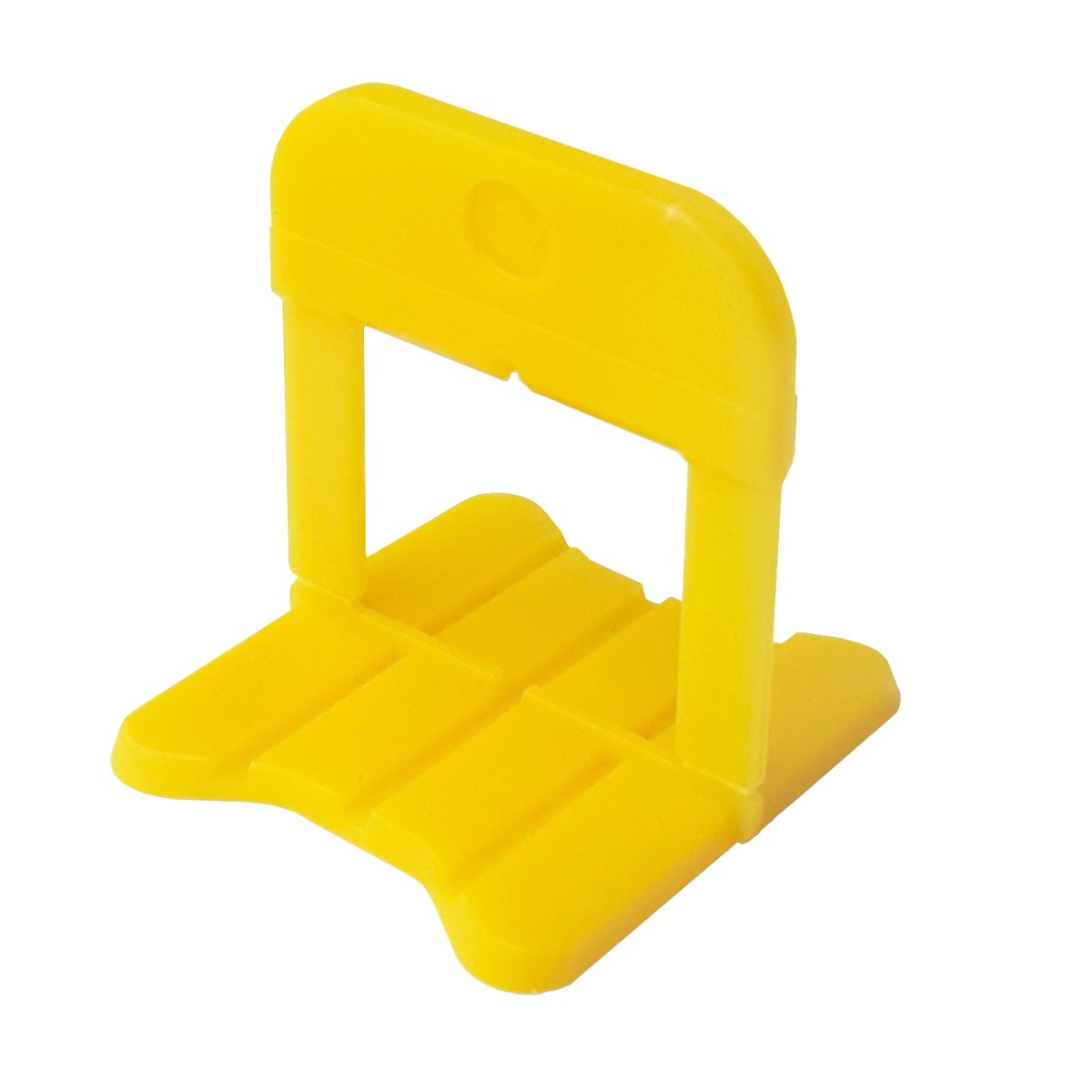

2246 ZERO – THE UNIVERSAL LEVELLING CLIP – 1,5 MM MIN. JOINT – 200PCS BAG

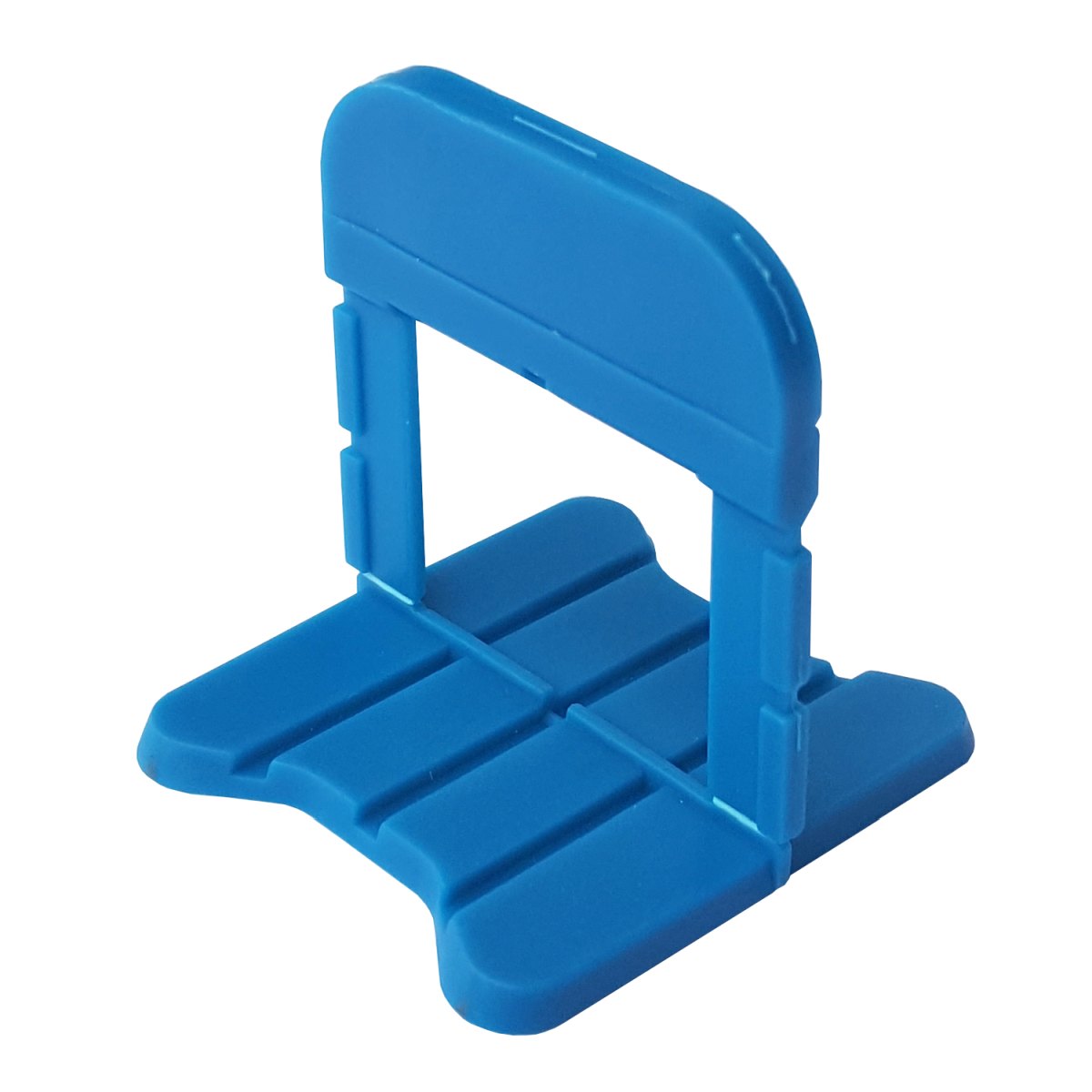

2248 ZERO – THE UNIVERSAL LEVELLING CLIP – 2,0 MM MIN. JOINT – 200PCS BAG

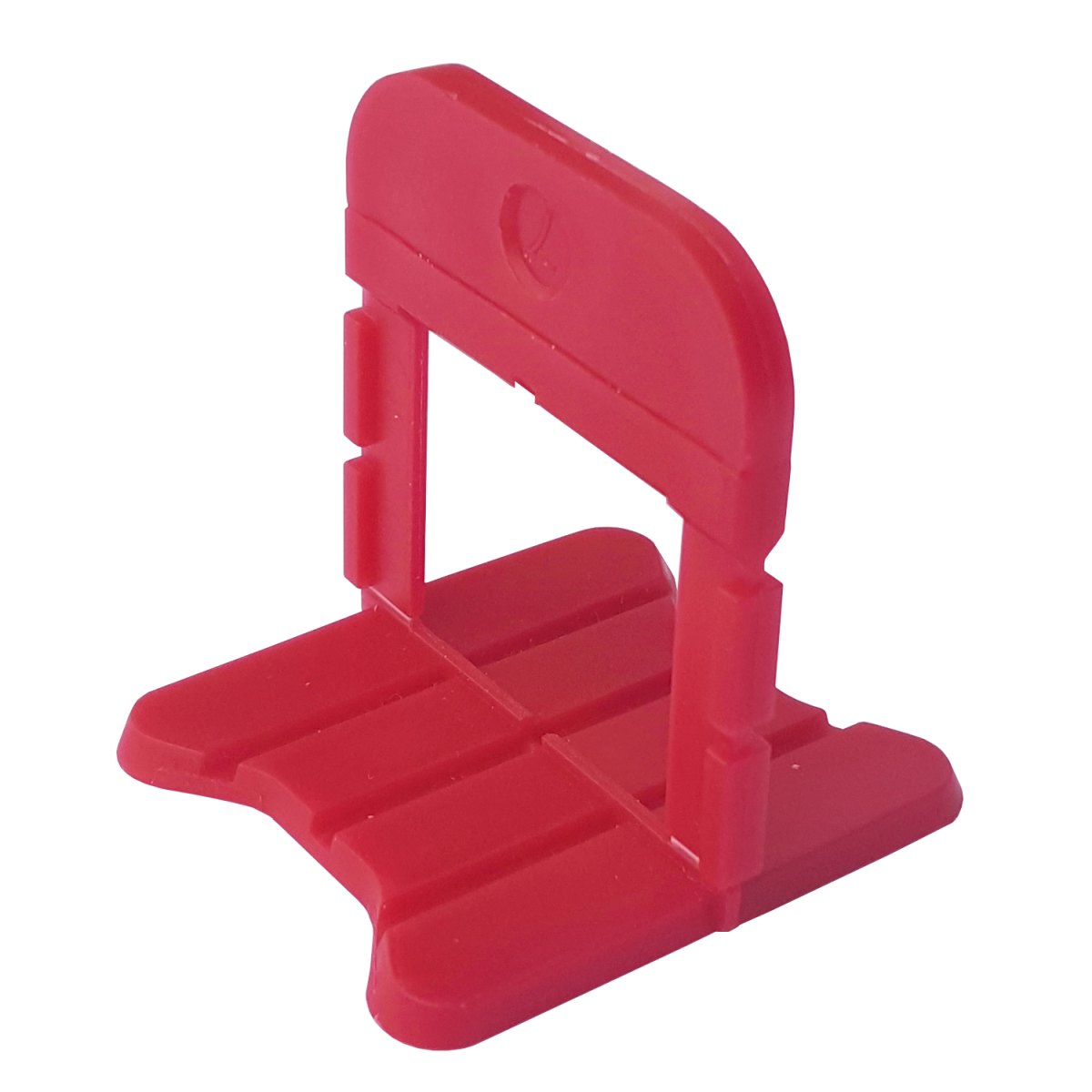

2249 ZERO – THE UNIVERSAL LEVELLING CLIP – 3,0 MM MIN. JOINT – 200PCS BAG

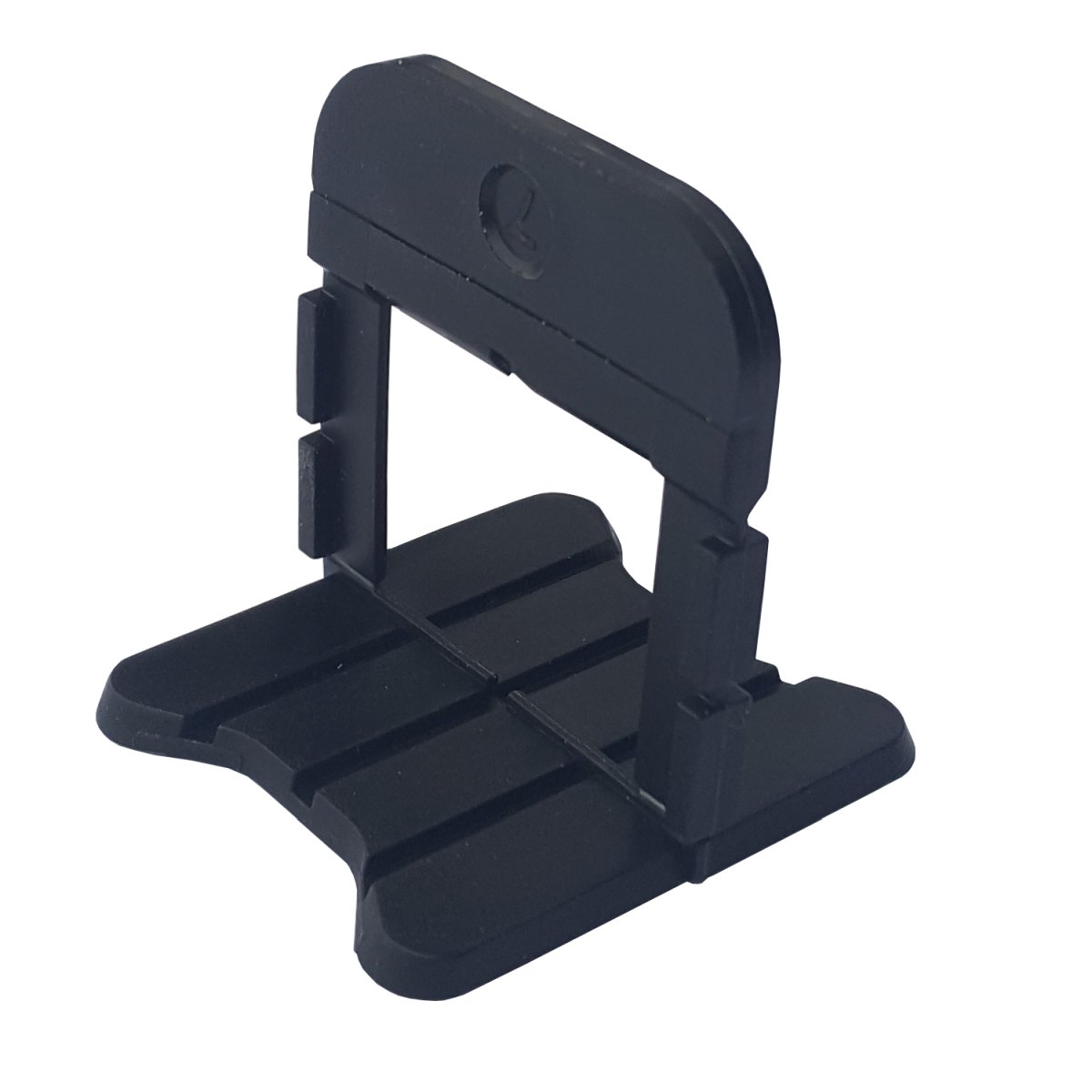

2250 ZERO – THE UNIVERSAL LEVELLING CLIP – 4,0 MM MIN. JOINT – 200PCS BAG
