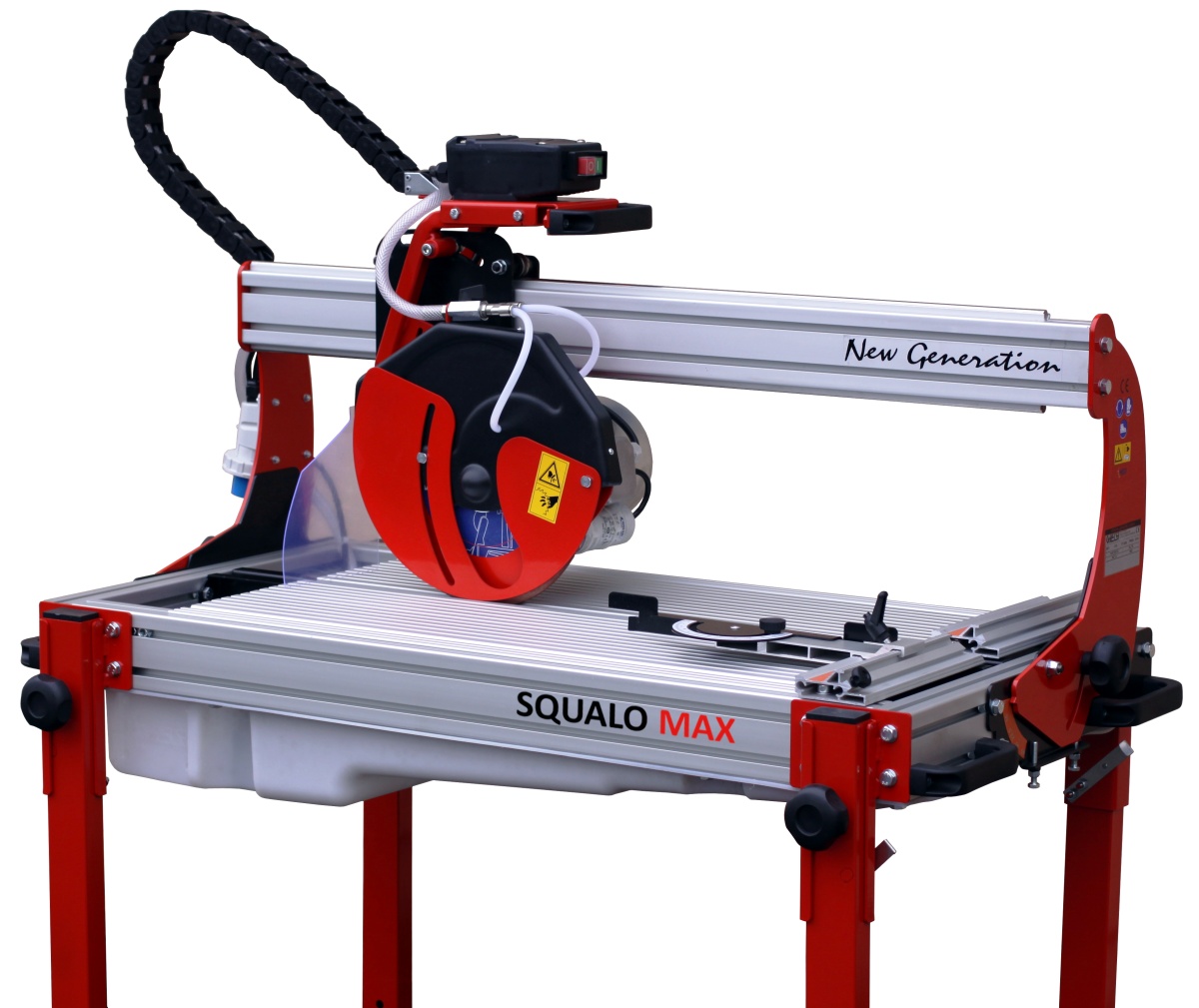

SQUALO family line

Squalo – more than 10 years spent as a solid basement for Ghelfi’s New Generation line of professional wet bridge-structure table saws – has evolved into a full-blown family of 3 models, diversified by cutting power.

All centered on the same extruded-AL profiles chassis, the same direct transmission gear and all equipped with all top-market structural elements as all other Ghelfi New Generation models, the three new versions named Squalo, Squalo MAX and Squalo TOP come equipped with increasingly powerful single-phase engines.

HERE IS HOW THEY COMPARE :

1,5 HP  (1,1 KW)

∅180/200 mm blades

5 cm cut depth

2,0 HP  (1,5 KW)

∅250/300 mm blades

6 cm cut depth

3,0 HP  (2,2 KW)

∅250/300 mm blades

6 cm cut depth

… AND WHAT THEY HAVE IN COMMON :

  • Cutting length: all Squalo versions are available in 3 standard chassis lengths
    • 75 cm
    • 105 cm
    • 135 cm
    • … or, we build-to-order on special requested length !
  • Extralight, extrastrong extruded-AL profiles chassis

  • All frictioning mechanical parts exclusively based on stainless steel
  • Lightweight: from 50 to 56 Kilos, depending on model (length)
  • Cable+pipe plastic protection chain, with single-replaceable links.
  • Mitre (45°) cut system is part of standard structure, as per all Ghelfi bridge saws
  • Movable +/- 180° goniometric square bundled free!

  • Polyethilene water tank with screw cap
  • Maintenance-free magnetic induction pump
  • Retractable legs with fall-safety clips, and 2 wheels to ease transport
  • Advanced electrical protection features: release coil and magneto-thermal switch
  • Mechanical side-blade protections

Download the brochures

Contact us for any and all information
