INNOVATION AND RELIABILITY

CLICK is the new-generation screw-based tile levelling system

Tile thickness: 3 to 30 mm
Minimum joint calibre: 1 mm
Built-in spacer calibres: 2, 3 e 4 mm
Ideal both for floor and wall tiling
Compatible with many old-generation systems

A COMPLETE SYSTEM

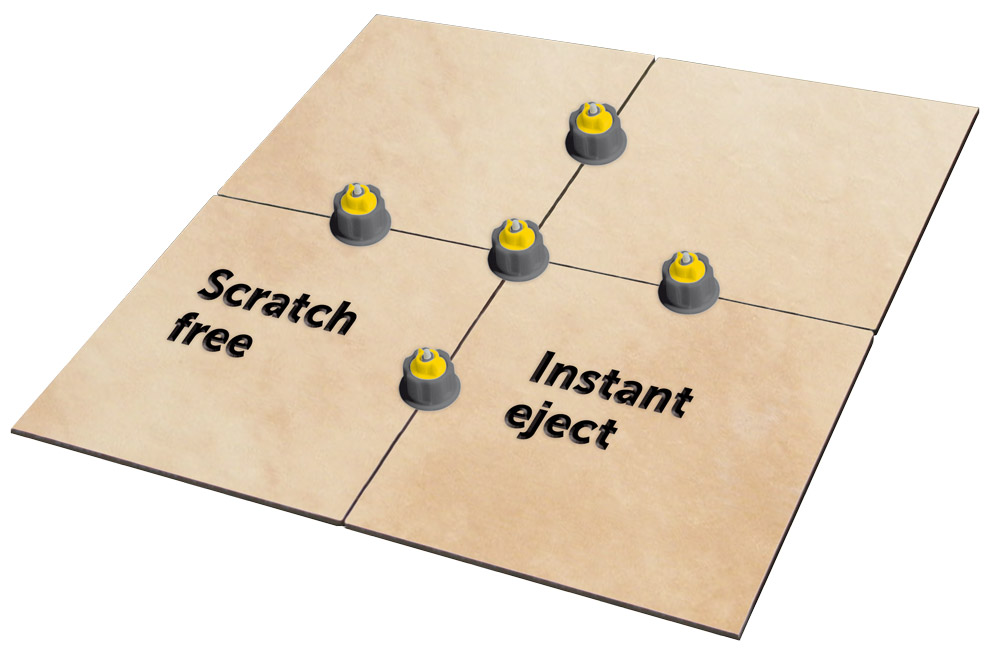

CLICK’s patent-pending levelling cap is what really makes adjacent tiles perfectly planar one to the other, with zero effort. You tighten it with your bare hands, no need for pliers or any other tools.

Its contact edge features a unique shaped surface easing residues and tiny debris automatic removal during operation, virtually eliminating the risk to scratch tiles finish. Big openings on the main structure grant easy visibility on the application point at all times.

After cracking the bases, a proprietary unlocking system facilitates instant screw removal, making tedious unscrewing sessions a thing of the past.

Base screws are available in multiple shapes to allow for either edge or angle optimised installation, and in various calibres as they also incorporate the traditional tile spacing function for the most common joint sizes.

Bases screws supporting tiles from 3 to 20 mm thick:

Linear base: 1, 2, 3 and 4 mm joint
X-shape base: 2, 3 and 4 mm joint
T-shape base: 2, 3 and 4 mm joint

1 mm linear joint

2 mm linear joint

3 mm linear joint

4 mm linear joint

2 mm X joint

3 mm X joint

4 mm X joint

2 mm T joint

3 mm T joint

4 mm T joint

Bases screws supporting tiles from 12 to 30 mm thick:

Linear base: 1, 2, 3 and 4 mm joint

1 mm linear joint

2 mm linear joint

3 mm linear joint

4 mm linear joint

IT’S SPECIAL

CLICK’s patented lock/unlock ring enables or disables grip in a snap.

Thanks to our patented yellow lock/unlock ring, installing CLICK caps is very fast.

Just unlock the patented yellow lock/unlock ring to instant-eject the stub after use. No more unscrewing!

Remember: like all other levelling systems, CLICK caps are supposed to be hit alongside the joint direction only.

RECOMMENDED QUANTITIES PER SQUARE METER

Check here below for how many screw bases are recommended depending on tile size and bond scheme

Linear bases

X-bases, straight bond

T-bases, running bond

thumbnail of Ghelfi levelling systems ENG A4

Download the brochure

Check on our catalog
