INNOVATION AND RELIABILITY

CLICK is the new-generation screw-based tile levelling system

  • Tile thickness: 3 to 20 mm
  • Minimum joint calibre: 1 mm
  • Built-in spacer calibres: 2, 3 e 4 mm
  • Ideal both for floor and wall tiling
  • Compatible with many old-generation systems

A COMPLETE SYSTEM

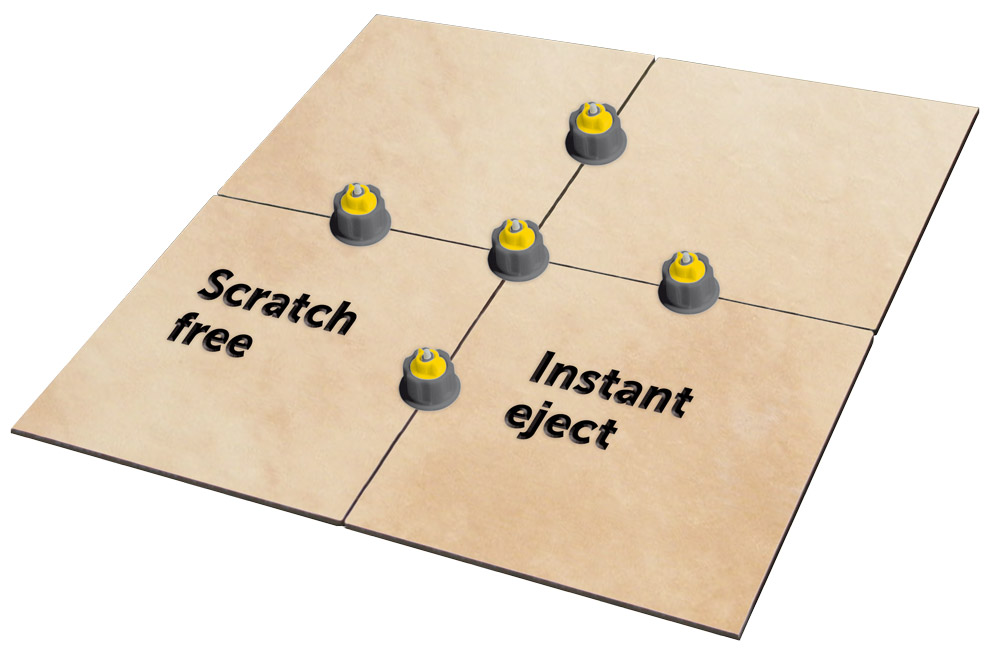

CLICK’s patent-pending levelling cap is what really makes adjacent tiles perfectly planar one to the other, with zero effort. You tighten it with your bare hands, no need for pliers or any other tools.



It contact edge features a unique shaped surface easing residues and tiny debris automatic removal during operation, virtually eliminating the risk to scratch tiles finish.



After cracking the bases, a proprietary unlocking system facilitates instant ejection of the screw, making tedious unscrewing sessions a thing of the past.

Base screws are available in multiple shapes to allow for either edge or angle optimised installation, and in various calibres as they also incorporate the traditional tile spacing function for the most common joint sizes.



  • Linear base: 1, 2, 3 and 4 mm joint
  • X-shape base: 2, 3 and 4 mm joint
  • T-shape base: 2, 3 and 4 mm joint

1 mm linear joint

2 mm linear joint

3 mm linear joint

4 mm linear joint

2 mm X joint

3 mm X joint

4 mm X joint

2 mm T joint

3 mm T joint

4 mm T joint

IT’S SPECIAL

CLICK’s patented lock/unlock ring enables or disables grip in a snap.

Thanks to our patented yellow lock/unlock ring, installing CLICK caps is very fast.

Just unlock the patented yellow lock/unlock ring to instant-eject the stub after use. No more unscrewing!

Remember: like all other levelling systems, CLICK caps are supposed to be hit alongside the joint direction only.

RECOMMENDED QUANTITIES PER SQUARE METER

Check here below for how many screw bases are recommended depending on tile size and bond scheme

Linear bases

X-bases, straight bond

T-bases, running bond
